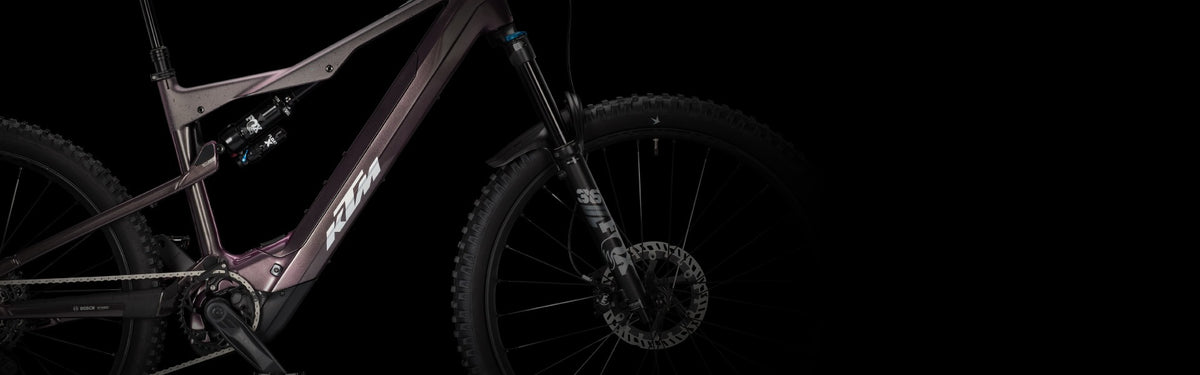

Macina Kapoho Prime

Roll over image to zoom in Click on image to zoom

BAR	KTM TEAM II Trail35 rizer25 800mm
BATTERY	Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock
CHAIN	SRAM GX Eagle T-Type 12speed
CHARGER	Bosch STANDARD Charger 4A
CRANKSET	KTM E-TRAIL2 ISIS 160mm Q12
DERAILLEUR (REAR)	SRAM S1000 EAGLE Transmission 12-Speed
DISPLAY	Bosch PURION 400 Display
FORK	FOX 36 Float 29" Perf E 160mm 15x110
FRAME	Mac Kapoho PERFORMANCE CARBON 160\|PT800 Bosch BDU38/M7270
GRIP	Ergon GE10
HEADSET	Acros AICR intern 1.1/8"-1.5" angle lim
MOTOR	Bosch PERFORMANCE CX-R BDU3863 (BOSCH PT-CXR8P4)
PEDALS	MTB-Pedal alloy VPE-527 flat
PERMISSIBLE TOTAL WEIGHT	143
SADDLE	Selle San Marco GND Supercomfort
SEAT POST	KTM COMP dropper internal 30.9 T:150
SHIFT LEVER	Front: Shimano MT500-L SP-Lever - Rear: SRAM POD AXS Controller
SHOCK	FOX FLOAT X Performance 2P-Lockout 250x70
STEM	KTM TEAM Trail35
TYRE (FRONT)	Schwalbe Magic Mary Trail Pro Soft 63-622
TYRE (REAR)	Schwalbe Albert Gravity Pro Soft 63-584
WEIGHT	24.9
WHEEL (FRONT)	Mavic E-Deemax S 29 CL 110/15TA\|622x30TC TLR
WHEEL (REAR)	Mavic E-Deemax S 27 CL 148/12TA\|584x30TC HG TLR

UPHILL. DOWNHILL. WHY NOT BOTH?

Whether tackling demanding climbs, technical descents, or all-day rides, the KAPOHO feels at home everywhere.

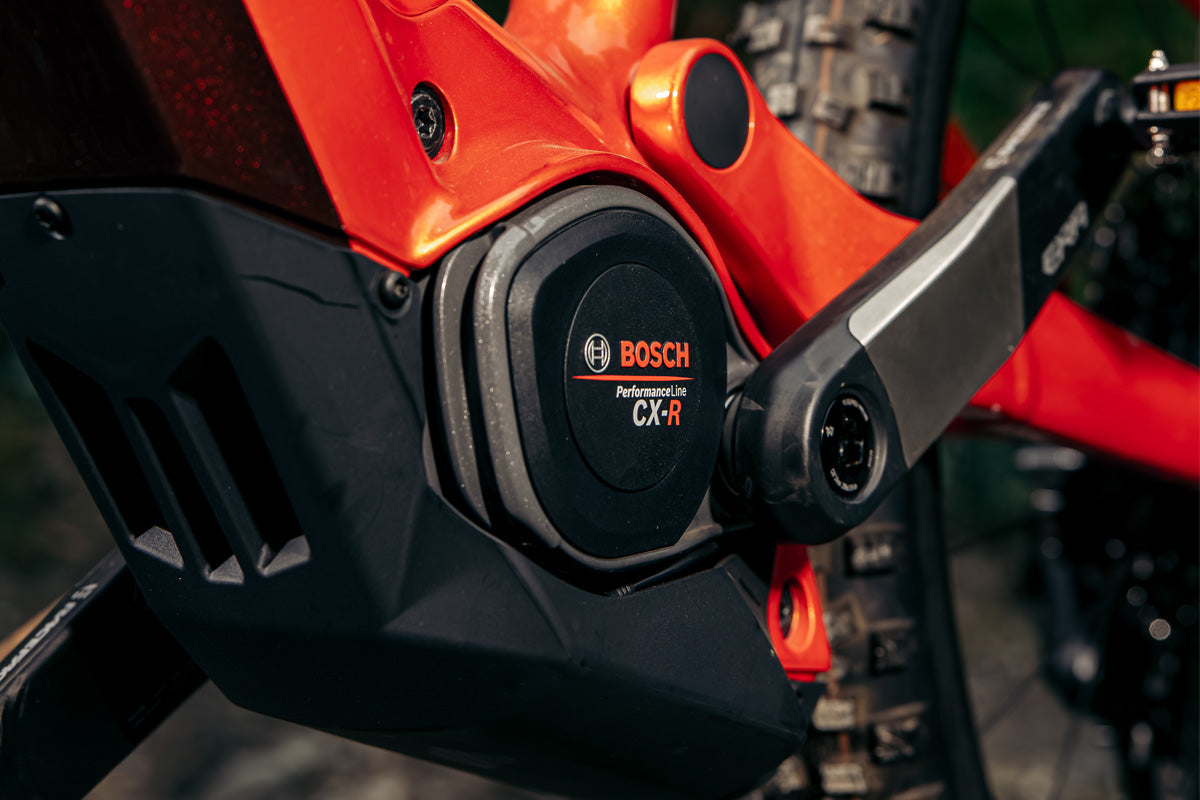

Bosch CX-R Performance

Power comes from the Bosch Performance Line CX-R, delivering up to 120 Nm of torque, 750 watts of maximum motor power, and 600% support.

Paired with a 800 Wh PowerTube battery delivering the range needed for long days on the trail. The battery can be conveniently removed upwards from the downtube thanks to POWER TUBE TOP LOADER.

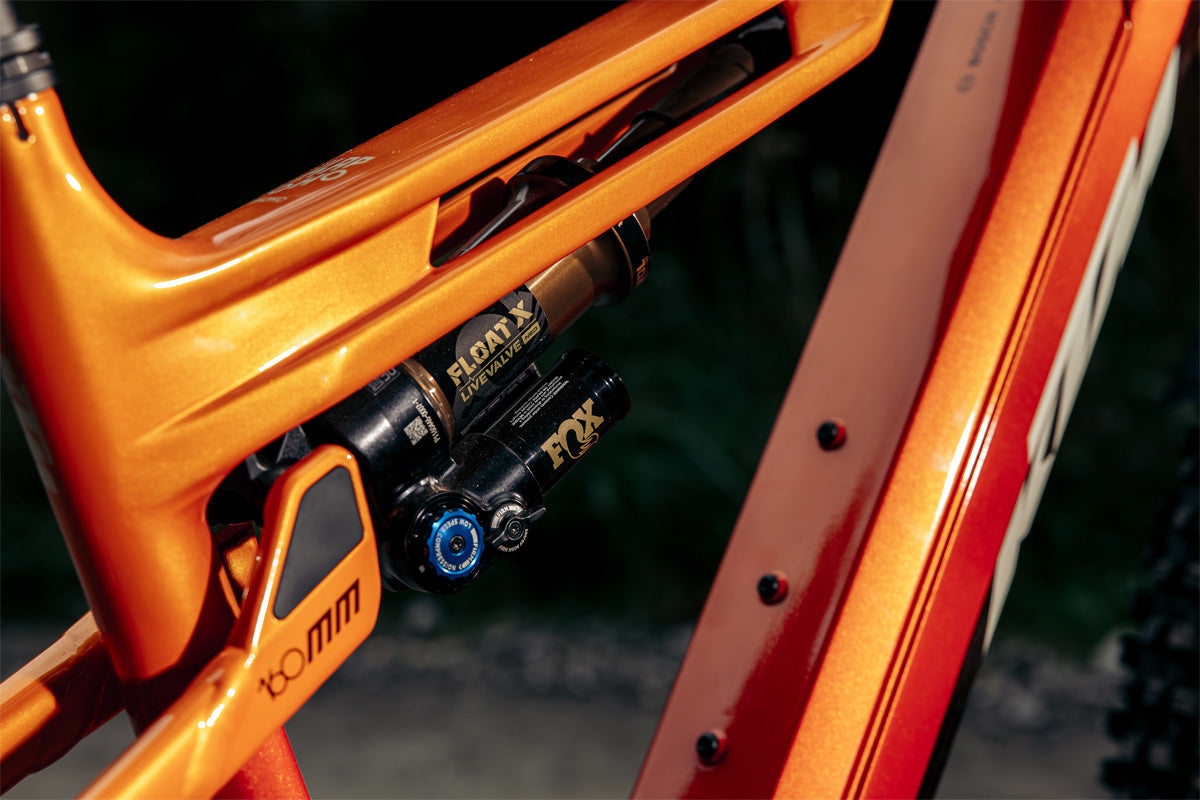

160mm Straight-Line-Link Suspension

Straight-Line-Link (SLL) suspension delivers a sensitive response, maximum control, and a confidence-inspiring ride feel, even on the most challenging trails.

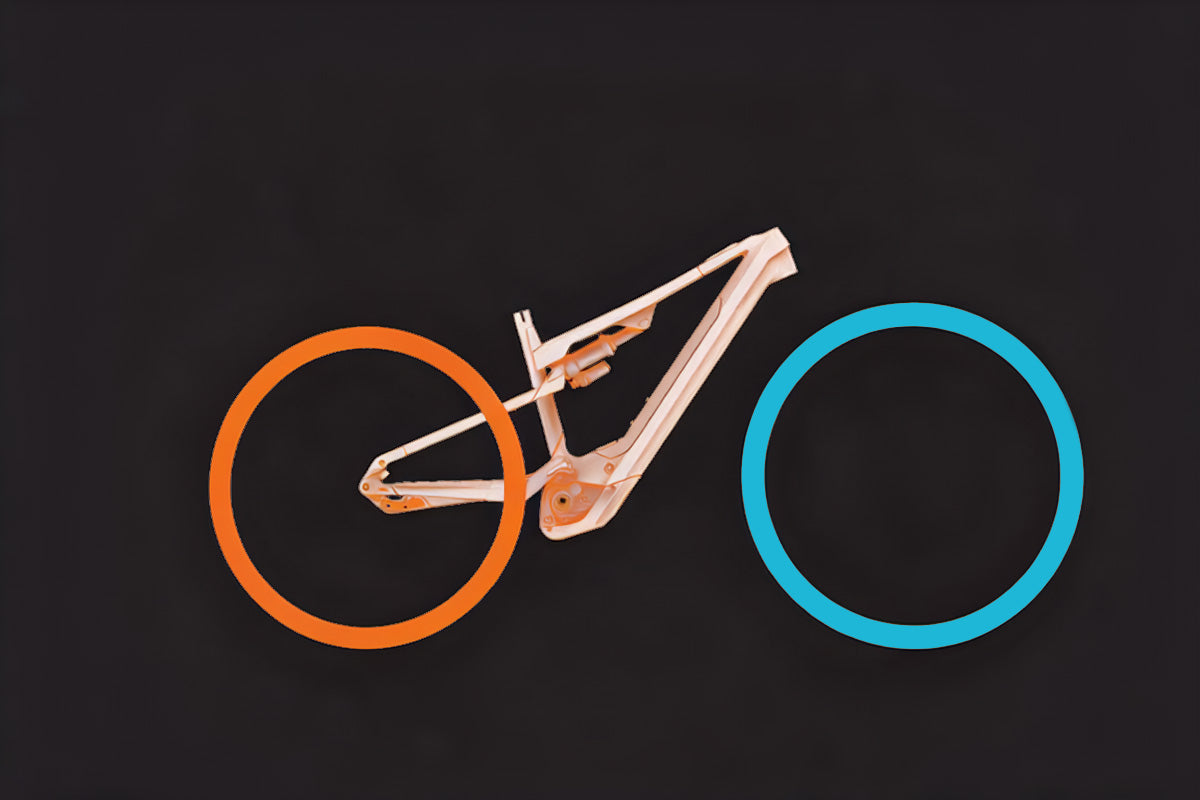

DiMMiX Wheel Size

The 29-inch front wheel provides stability, precision, and confidence at speed, while the 27.5-inch rear wheel delivers maximum traction and efficient power transfer.

Together, they create a setup that truly excels in demanding terrain.

Frame Size	M	L	XL
Height	165-174 cm / 5.5"-5.9”	175-184 cm / 5.9"-6.0”	185-194 cm / 6.1"-6.4”
Size (CM)	43	48	53
BB Drop	7	7	7
Standover Height	830	830	841
Reach	453	471	493
Stack	611	620	634
Wheelbase	1228	1250	1278
Chainstay Length	448	448	448
Head Tube Length	100	110	125
Head Angle	65,0°	65,0°	65,0°
Seat Angle	76,5° (74,9°)	76,5° (74,9°)	76,5° (74,9°)
Top Tube Length	600	620	645
Seat Tube Length	430	450	480

Macina Kapoho Prime

1X12 SRAM S1000 TRANSMISSION
160R | 160F
800Wh

Specification
