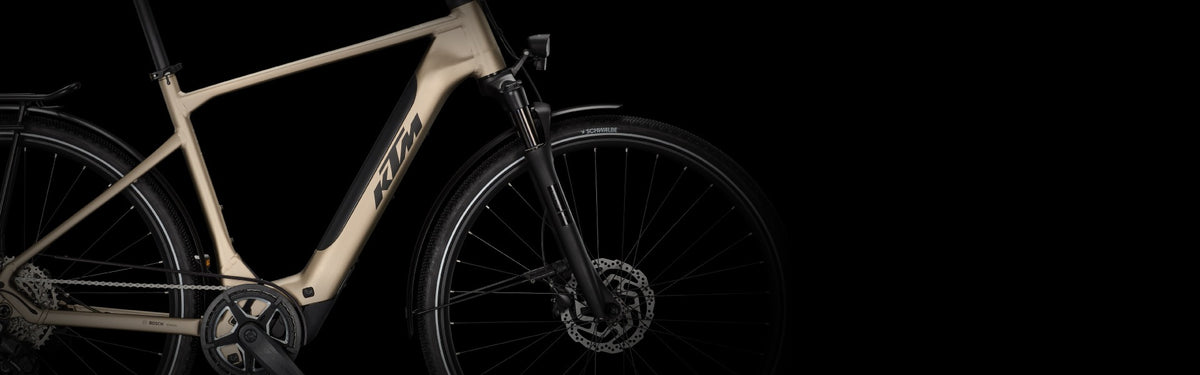

Sport SX 20
Roll over image to zoom in Click on image to zoom
Sport SX 20

Sport SX 20

1X10 SHIMANO CUES
400Wh Battery
Bosch PERFORMANCE SX Motor

size: S
Color: Platin Bronze
Price:
£3,199.00

Specification

RIDE LIGHT, TRAVEL FAR

The SX range takes touring by bike to an entirely new level. Thanks to its slim tube profiles and compact downtube-motor interface, the lightweight design is not only visible at first glance but also reflected on the scale.

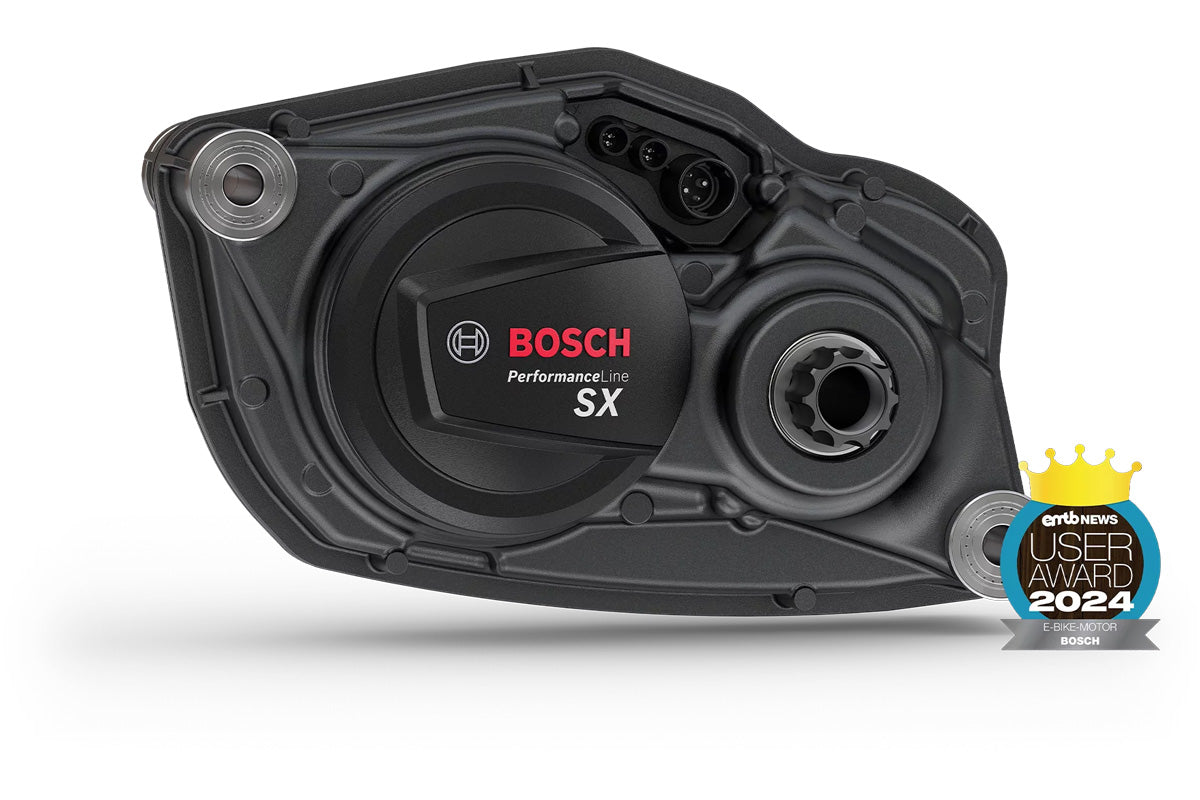

Performance Line SX

Equipped with the Bosch Performance Line SX, Bosch's lightest drive unit at approximately 2 kg, delivering 55 Nm of torque for agile and natural-feeling assistance.

CompactTube 400Wh

The Bosch CompactTube 400Wh battery delivers reliable, all-day range in a sleek, fully integrated design — compact and lightweight, built to disappear seamlessly into the frame.

Everything You Need

Standard specification includes all the components that define a modern trekking bike: a powerful lighting system, mudguards, and a luggage rack. This means the bike is ready from day one for everyday use, leisure rides, and longer tours.

Geometry

Frame Size S M L XL
Size (CM) 46 51 56 60
BB Drop 55 55 55 55
Standover Height 788 818 851 880
Reach 402 407 411 421
Stack 584 600 617 635
Wheelbase 1082 1092 1103 1119
Chainstay Length 452 452 452 452
Head Tube Length 120 137 155 174
Head Angle 70,5° 70,5° 70,5° 70,5°
Seat Angle 73,0° 73,0° 73,0° 73,0°
Top Tube Length 580 590 600 615
Seat Tube Length 460 510 560 600
