Specification
| BAR | KTM TEAM II Trail35 rizer25 800mm |
|---|---|
| BRAKE | Shimano M4100 / MT420 4-Piston |
| BRAKE DISC (FRONT) | Shimano RT30 CL 180 |
| BRAKE DISC (REAR) | Shimano RT30 CL 180 |
| CHAIN | Shimano M6100-12 |
| CHAIN RING | Shimano 32T |
| CRANKSET | Shimano MT512-12 32T |
| DERAILLEUR (REAR) | Shimano Deore XT M8100-12 SGS shadow+ |
| FORK | RockShox Recon Gold RL 29" 140mm 15x110 |
| FRAME | SCARP 29" Alloy 6061 tb 140 UDH/M4890 |
| GRIP | KTM COMP Lock |
| HEADSET | Acros AICR intern 1.1/8"-1.5" angle lim |
| PERMISSIBLE TOTAL WEIGHT | 134KG |
| SADDLE | Selle Royal SRX |
| SEAT CLAMP | KTM COMP dropper internal 30.9 T:100 |
| SHIFT LEVER | Shimano Deore M6100-12 |
| SHOCK | RockShox Deluxe Select+ 230x65 |
| SPROCKET | Shimano Deore M6100-12 / 10-51 |
| STEM | KTM TEAM II Trail35 |
| TYRE (FRONT) | Maxxis Rekon EXO/TR 62-622 |
| TYRE (REAR) | Maxxis Rekon EXO/TR 62-622 |
| WEIGHT | 15.6KG |
| WHEEL (FRONT) | Ryde Rival30 32H 622x30C |
| WHEEL (REAR) | Ryde Rival30 32H 622x30C |

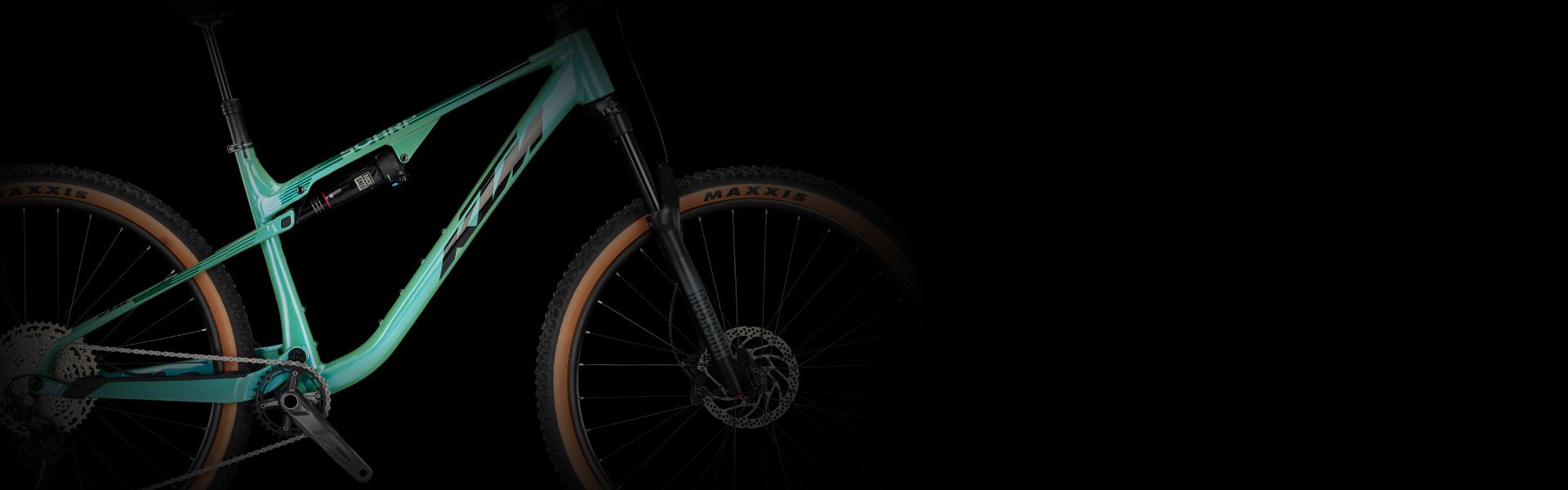

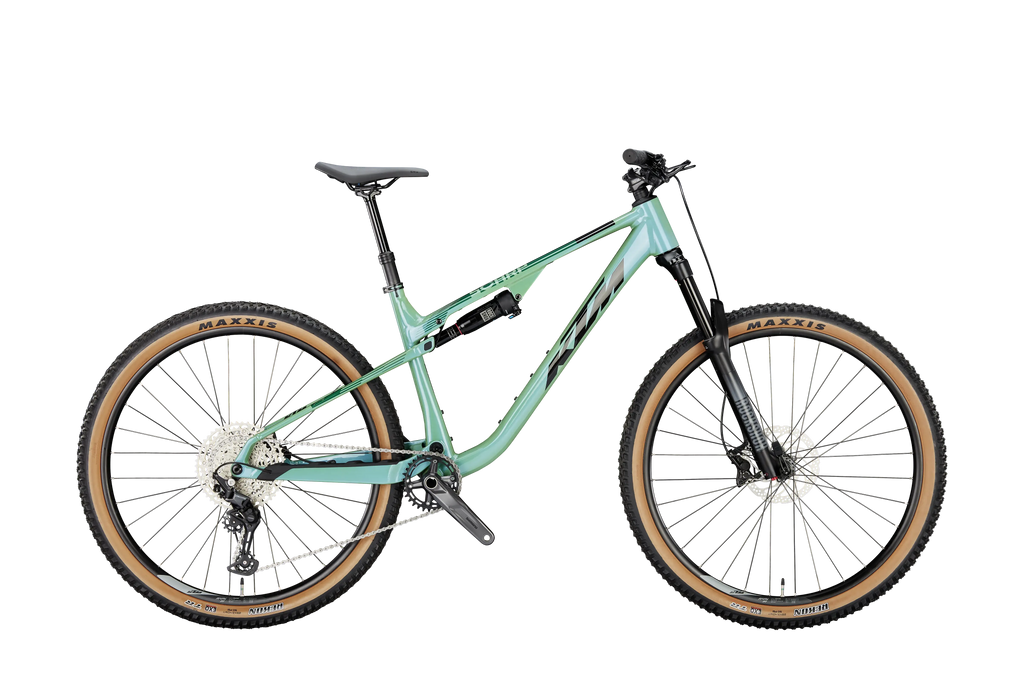

SCARP LT 292
JOIN THE EVOLUTION The racing DNA of the Scarp has always been a guarantee for highest quality and maximum performance
With great pride, we present the third evolution of our flagship in the cross- and down country sector

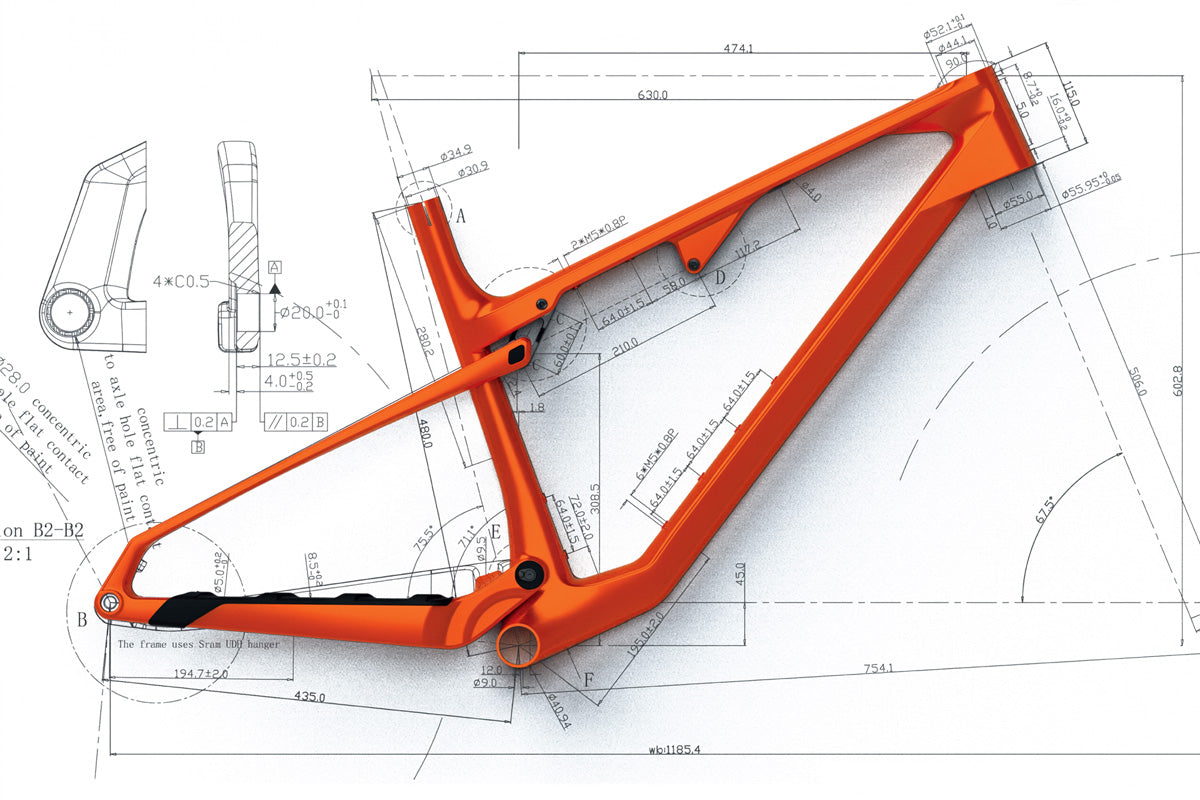

The EVO III frame is used across the entire range and marks the beginning of a new Scarp era
All models are the result of years of experience from KTM bicycle engineers, combined with feedback directly from the toughest race tracks in the world
The demands of the best racers, regarding geometry and handling, have thus been precisely transferred into production-bikes
For the final test, the Scarp Evo III frame had to prove itself at the Cape Epic in South Africa and at the Mountain bike World Cup in Brazil
The praises from the athletes confirmed the creation of a masterpiece. Particularly convincing are the many technical details reflecting perfection down to the last detail
The new Scarp frame is available in both carbon and aluminium. The suspension travel varies from 100 to 140mm
From entry-level full- suspension bikes to high-end machines, there are no limits to your riding pleasure
As a highlight, two special editions are waiting as frame sets
The Scarp Proto25 frame shines in the same camouflage design that adorned the bikes of the professionals during the testing period
Size Guide
| Frame Size | M | L | XL |
|---|---|---|---|
| Height | 165 - 174CM / 5'5" - 5'8" | 175 - 184cm / 5'9"- 6'0" | 185 - 194CM / 6'0" - 6'4" |
| BB Drop | 33 | 33 | 33 |
| Standover Height | 821 | 826 | 830 |
| Reach | 461 | 479 | 497 |
| Stack | 620 | 629 | 638 |
| Wheelbase | 1211 | 1233 | 1255 |
| Head Angle | 65,5° | 65,5° | 65,5° |
| Seat Angle | 76,5° (72,7°) | 76,5° (73,1°) | 76,5° (73,4°) |
