Revelator Syro Comp

Roll over image to zoom in Click on image to zoom

BAR	KTM COMP Road
CHAIN	Shimano DEORE M6100-12
CRANKSET	Shimano 105 R7100-12 50-34
DERAILLEUR (REAR)	Shimano 105 R7100-12 shadow
FORK	Revelator SYRO Premium Carbon F20
FRAME	Road AeroLite Premium Carbon/R7650
GRIP	KTM tape
HEADSET	Acros AICR intern 1.1/8"-1.5" angle lim
SADDLE	KTM TEAM ROAD Cr-Mo Rails
SEAT POST	KTM COMPLink zero Alloy aero/350
SHIFT LEVER	Shimano 105 ST-R7120/R7170
SPROCKET	Shimano HG710-12 / 11-36
STEM	KTM TEAM Road ICR -7°
TYRE (FRONT)	Continental Grand Prix 32-622
TYRE (REAR)	Continental Grand Prix 32-622
WEIGHT	8,90
WHEEL (FRONT)	KTM Pro Road 34 CL 100/12TA\|622x22TC TLR by Ibex
WHEEL (REAR)	KTM Pro Road CL 142/12TA\|622x22TC HG TLR by Ibex

comfort-oriented geometry

With a balanced combination of endurance comfort and aerodynamic performance, the Revelator Syro is your perfect companion for long adventures, spontaneous after-work rides, and ambitious challenges that have been on your bucket list for years.

Its comfort-oriented geometry and slightly more upright riding position provide a relaxed riding experience, even after hours in the saddle – allowing you to focus on what truly matters: the journey.

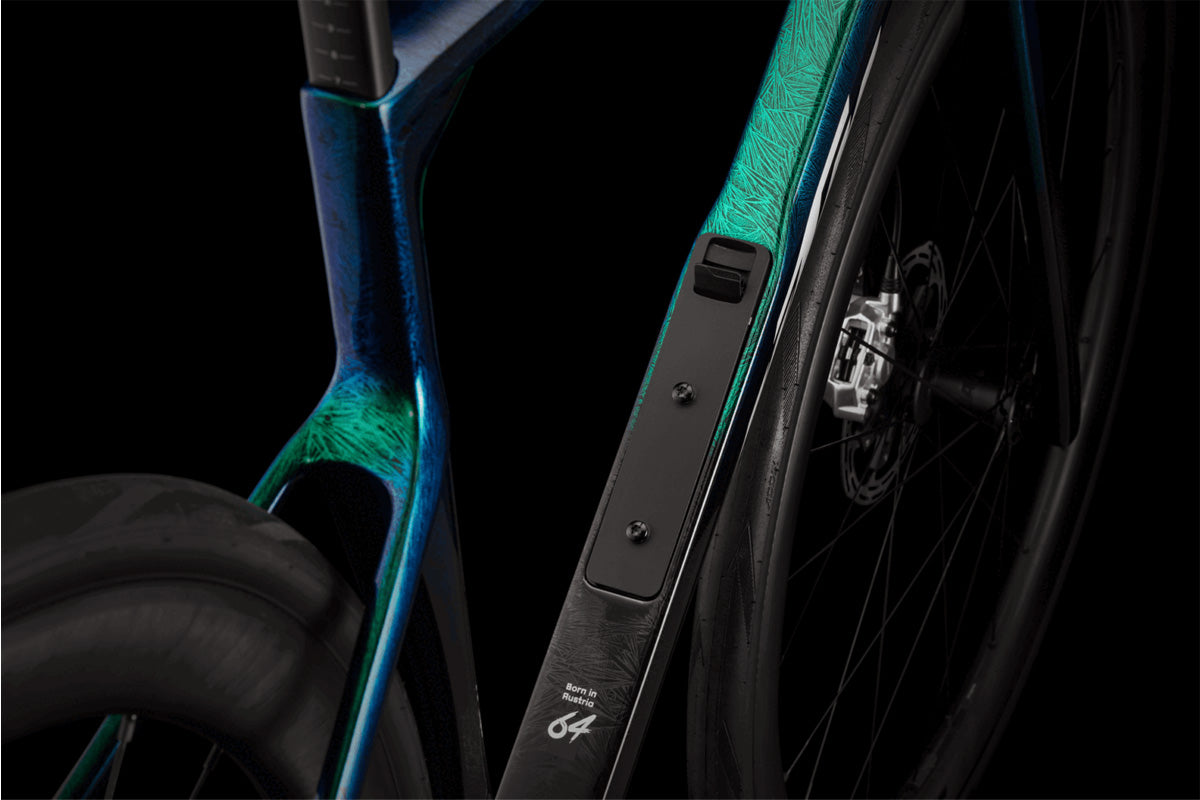

Full Integrated Storage

A standout feature is the FIS – Full Integrated Storage integrated into the downtube. Thanks to the practical ClickFix system, essentials such as a spare tube, CO₂ cartridge, or personal belongings are securely stored and always within easy reach.

Full Integrated Storage can be individually enhanced with specially designed accessories. A custom-fit storage bag and an integrated tool kit are available for all models through the KTM aftermarket range.

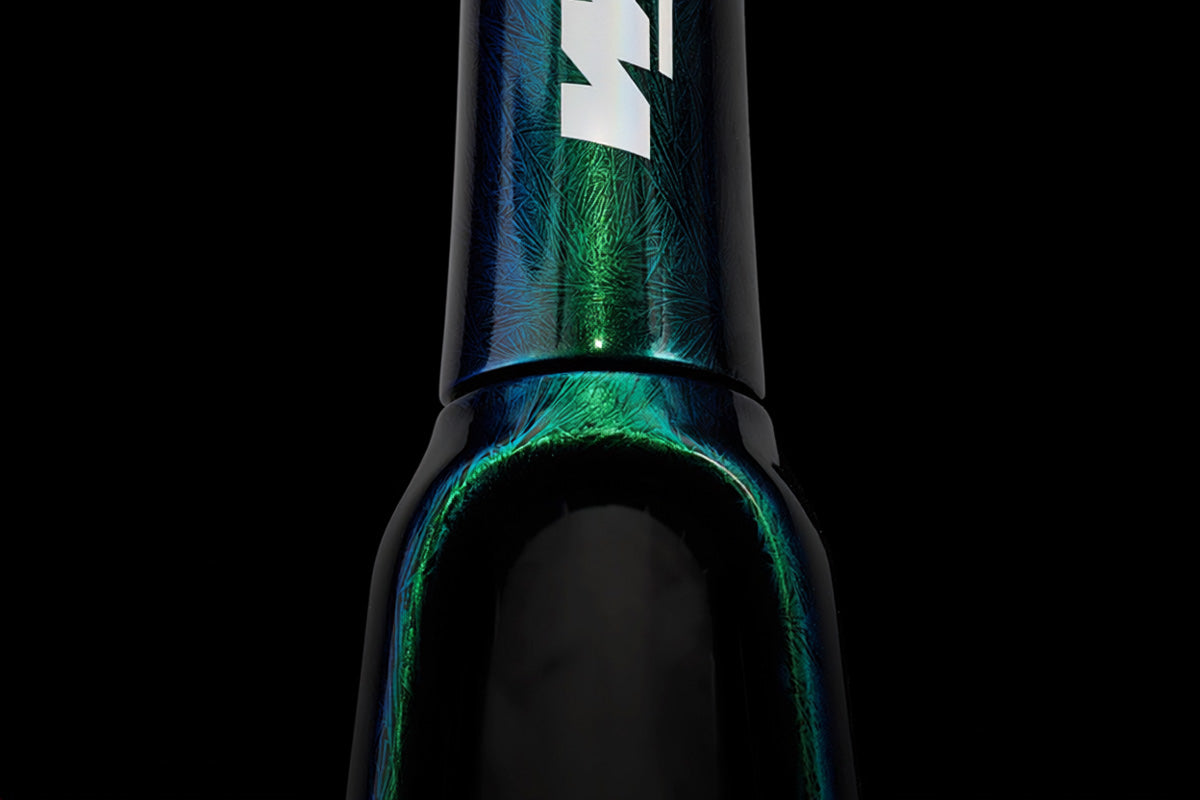

Generous tyre clearance

Generous tyre clearance up to 36mm gives the Revelator Syro the flexibility to run wider tyres for extra comfort and grip, whether you're chasing speed on smooth tarmac or exploring rougher, less-travelled roads

Frame Size	XXS	XS	S	M	L	XL	XXL
Height	-	150-164cm / 4'11”-5’5”	165-169cm / 5'5"-5’7”	170-179cm / 5'7"-5’10”	180-187cm / 5'10”-6’2”	188-194cm / 6'2”-6’4”	-
Size (CM)	46	49	52	55	57	59	61
BB Drop	74	74	72	72	70	68	68
Standover Height	725	749	775	799	818	837	856
Reach	363	367	376	380	385	398	392
Stack	513	534	554	573	590	607	626
Wheelbase	972	979	987	997	1008	1018	1028
Chainstay Length	415	415	415	415	415	415	415
Head Tube Length	106	126	146	166	186	206	226
Head Angle	70.5	71	72	72	72	72	72
Seat Angle	75	74.5	74	73.5	73	72.5	72
Top Tube Length	500	515	535	550	565	580	595
Seat Tube Length	410	440	470	500	520	540	560

Revelator Syro Comp

2X12 SHIMANO 105
R7650 Premium Carbon Frame

Specification
