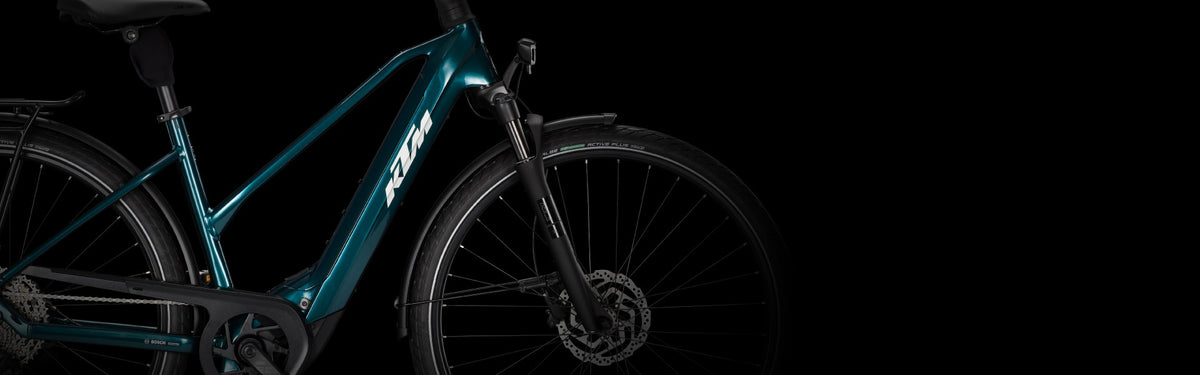

Macina Tour PX 720.1

1X11 SHIMANO CUES
720Wh Battery

size: XS

Color: Dark Sea

Frame Style: Low Step

Price:

£3,199.00

BAR	KTM Line rizer20 640mm
BATTERY	Bosch PowerTUBE 720Wh - ABUS integrated lock IT1
CARRIER	KTM tour snap-it 2.0/monkeyload\|childseat + rack clip
CHAIN	Shimano LG500-9/10/11
CHARGER	Bosch COMPACT Charger 2A
CRANKSET	KTM E-LINE2 ISIS 170mm Q8
DERAILLEUR (REAR)	Shimano CUES U6000-11/10 LG Shadow+
DISPLAY	Bosch INTUVIA 200 Display w/Socket 31,8mm
FENDER	front: SKS A55K PET Trek 28" - rear: SKS A55K PET Trek 28"
FORK	Suntour NCX32-D Air LO 63mm
FRAME	Macina Trekking Onroad Alloy 6061\|PT800 Bosch BDU34/T5947
GRIP	GRIP ERGON GP10
HEADSET	Acros AICR internal 1.5"-1.5"
KICKSTAND	KTM 28" adjustable MY2025
LIGHT (FRONT)	B&M Briq-S Premium 110Lux
LIGHT (REAR)	B&M Toplight 2C
MOTOR	Bosch PERFORMANCE PX BDU3470 (BOSCH PT-PX7I2)
PEDALS	Trekking-Pedal alloy VP-616 rubber
PERMISSIBLE TOTAL WEIGHT	146
SADDLE	KTM LINE TOUR
SEAT POST	Suntour SP25-NCX suspension 30.9/350
SHIFT LEVER	Shimano CUES U6000-11 LG /Display
STEM	KTM Line ICR 0-90° adjust
TYRE (FRONT)	Schwalbe Energizer Active Plus 50-622 Reflex
TYRE (REAR)	Schwalbe Energizer Active Plus 50-622 Reflex
WEIGHT	27.4

QUALITY. COMFORT. PERFORMANCE.

The MACINA TOUR combines 50 mm tyres, a Bosch Performance Line CX motor, and a robust aluminium frame with clean integration and modern trekking geometry.

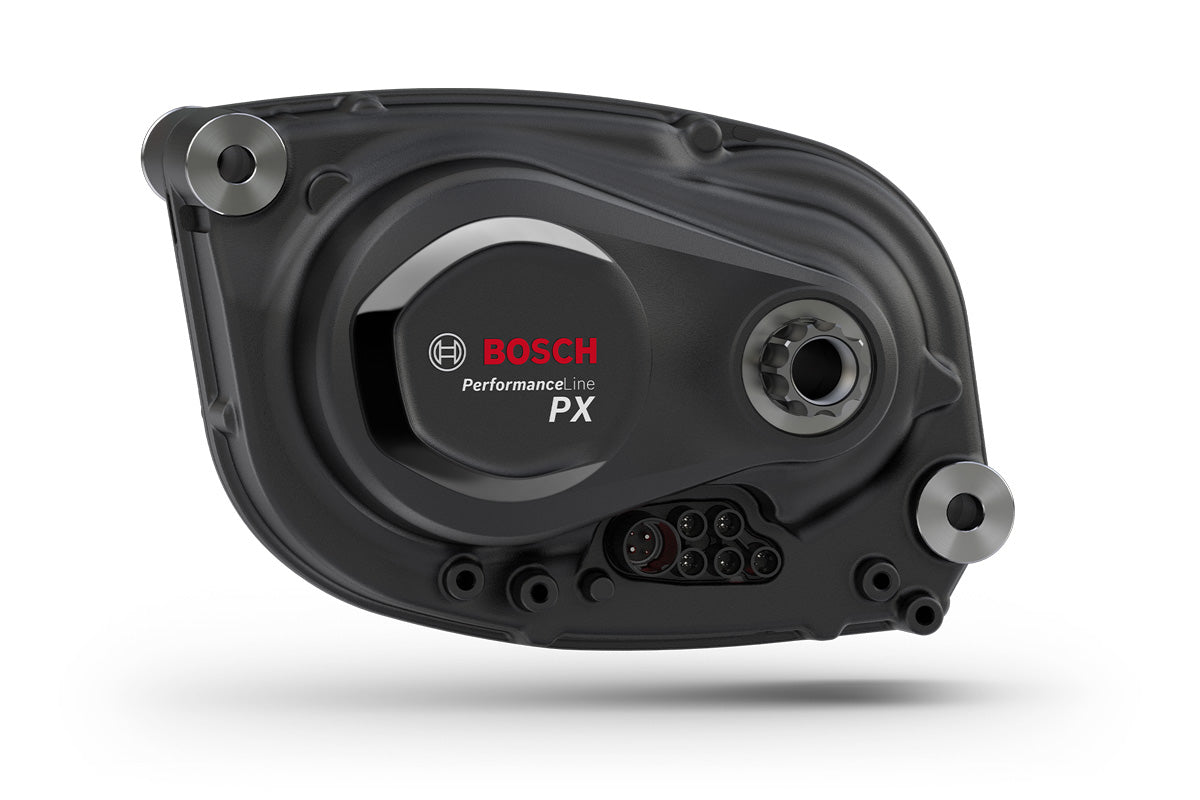

Bosch Performance Line PX

Powered by the Bosch Performance Line PX, this bike delivers quiet, high-torque performance built for long-distance touring — up to 90 Nm of smooth, natural-feeling power you can rely on mile after mile.

Display Integration

A fully adjustable stem with an integrated control unit, delivering personalised rider fit alongside streamlined access to power settings.

Snap-it 2.0 Luggage

A lightweight, high-durability rear luggage rack featuring an integrated child seat mounting point for secure, tool-free conversion between cargo and family use.

Frame Size	M	L	XL
Height	170-177cm / 5'5"-5’8”	178-187cm / 5'10”-6’2”	188-194cm / 6'2”-6’4”
Size (CM)	51	56	60
BB Drop	62	62	62
Standover Height	825	857	885
Reach	403	408	418
Stack	611	628	646
Wheelbase	1112	1123	474
Chainstay Length	474	474	474
Head Tube Length	137	155	174
Head Angle	70,5°	70,5°	70,5°
Seat Angle	73,0°	73,0°	73,0°
Top Tube Length	590	600	615
Seat Tube Length	510	560	600

Frame Size	XS	S	M	L
Height	150-164cm / 4'11”-5’5”	165-169cm / 5'5"-5’7”	170-177cm / 5'5"-5’8”	178-187cm / 5'10”-6’2”
Size (CM)	43	46	51	56
BB Drop	62	62	62	62
Standover Height	422	791	825	857
Reach	375	399	403	408
Stack	626	591	611	628
Wheelbase	1131	1112	1112	1123
Chainstay Length	487	474	474	474
Head Tube Length	165	120	137	155
Head Angle	68,0°	69,5°	70,5°	70,5°
Seat Angle	71,5°	73,0°	73,0°	73,0°
Top Tube Length	585	580	590	600
Seat Tube Length	430	460	510	560

Macina Tour PX 720.1

1X11 SHIMANO CUES
720Wh Battery

Specification
