Macina Prowler Prestige

Roll over image to zoom in Click on image to zoom

BAR	KTM TEAM II Trail35 rizer25 800mm
BATTERY	800WH
CHAIN	SRAM GX Eagle T-Type 12speed
CHARGER	Bosch Charger 4A
CRANKSET	KTM E-TRAIL2 ISIS 160mm Q12
DERAILLEUR (REAR)	SRAM GX EAGLE Transmission 12-Speed
DISPLAY	Bosch PURION 400 Display
FORK	FOX 38E FLOAT 29" Performance 180mm 15x110
FRAME	Mac Prowler PERFORMANCE CARBON 170\|PT800 Bosch BDU38/M7230
GRIP	Ergon GE10
HEADSET	Acros AICR intern 1.1/8"-1.5" angle lim
MOTOR	Bosch PERFORMANCE CX-R BDU3863 (BOSCH PT-CXR8P4)
PEDALS	MTB-Pedal nylon VP-522 flat
PERMISSIBLE TOTAL WEIGHT	144
SADDLE	Fizik Terra Aidon X5 SAlloy
SEAT POST	KTM COMP dropper internal 30.9 T:150
SHIFT LEVER	Front: SRAM Dropper SP Lever - Rear: SRAM GX Eagle AXS Controller
SHOCK	FOX DHX2 PerformElite 2P-Lockout 250x75
STEM	KTM TEAM Trail35
TYRE (FRONT)	Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622
TYRE (REAR)	Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584
WEIGHT	25.3
WHEEL (FRONT)	KTM E-TEAM Trail 29 CL 110/15TA\|622x30TC TLR by DT
WHEEL (REAR)	KTM E-TEAM Trail 27 CL 148/12TA\| 584x35TC TLR by DT

ALL IN. ALL OUT.

When the trail gets steeper, faster, and more technical, the MACINA PROWLER comes into its own.

Bosch CX-R Performance

Power comes from the Bosch Performance Line CX-R, delivering up to 120 Nm of torque, 750 watts of maximum motor power, and 600% support.

Paired with a 800 Wh PowerTube battery delivering the range needed for long days on the trail. The battery can be conveniently removed upwards from the downtube thanks to POWER TUBE TOP LOADER.

Ready to tackle any trail

With 180 mm of travel up front and 170 mm at the rear, the Prowler is uncompromisingly designed for demanding enduro trails.

Race proven STRAIGHT-LINE-LINK suspension delivers sensitive response, maximum traction, and control.

Built to last

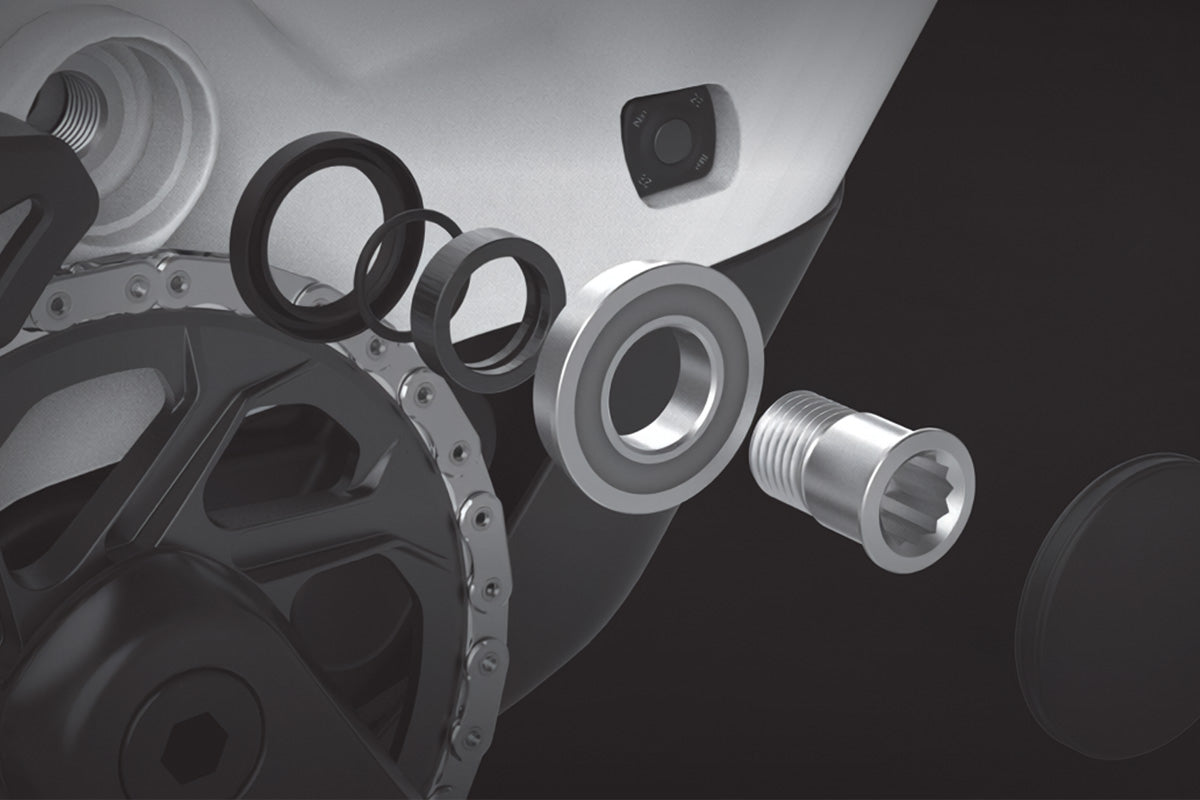

SUBMARINE-MAIN-PIVOT seals against water and dirt ingress.

Advanced stainless steel bearings with special outer shape and stainless steel hardware help withstand high levels of torque.

Additional hermetic sealing helps improve durability and ease of servicing.

Frame Size	M	L	XL
Height	165-174 cm / 5.5"-5.9”	175-184 cm / 5.9"-6.0”	185-194 cm / 6.1"-6.4”
Size (CM)	43	48	53
BB Drop	0	0	0
Standover Height	839	842	847
Reach	443	461	483
Stack	618	627	641
Wheelbase	1241	1263	1292
Chainstay Length	452	452	452
Head Tube Length	100	110	125
Head Angle	64.1	64.1	64.1
Seat Angle	75.6 (74.3)	75.6 (74.4)	75.6 (74.4)
Top Tube Length	602	622	647
Seat Tube Length	430	450	480

Macina Prowler Prestige

1x12 SRAM GX TRANSMISSION
170R | 180F
800Wh

Specification
