Macina Lycan 892

1X12 SHIMANO DEORE
140R | 140F
29R | 29F (Small 27.5)



size: S
Color: Matt Grey
Price:
£3,699.00

Specification

RIDE WITH AGILITY, EXPLORE WITHOUT LIMITS.

Lower weight, high stiffness, and precise handling deliver even more dynamic performance on the trail.

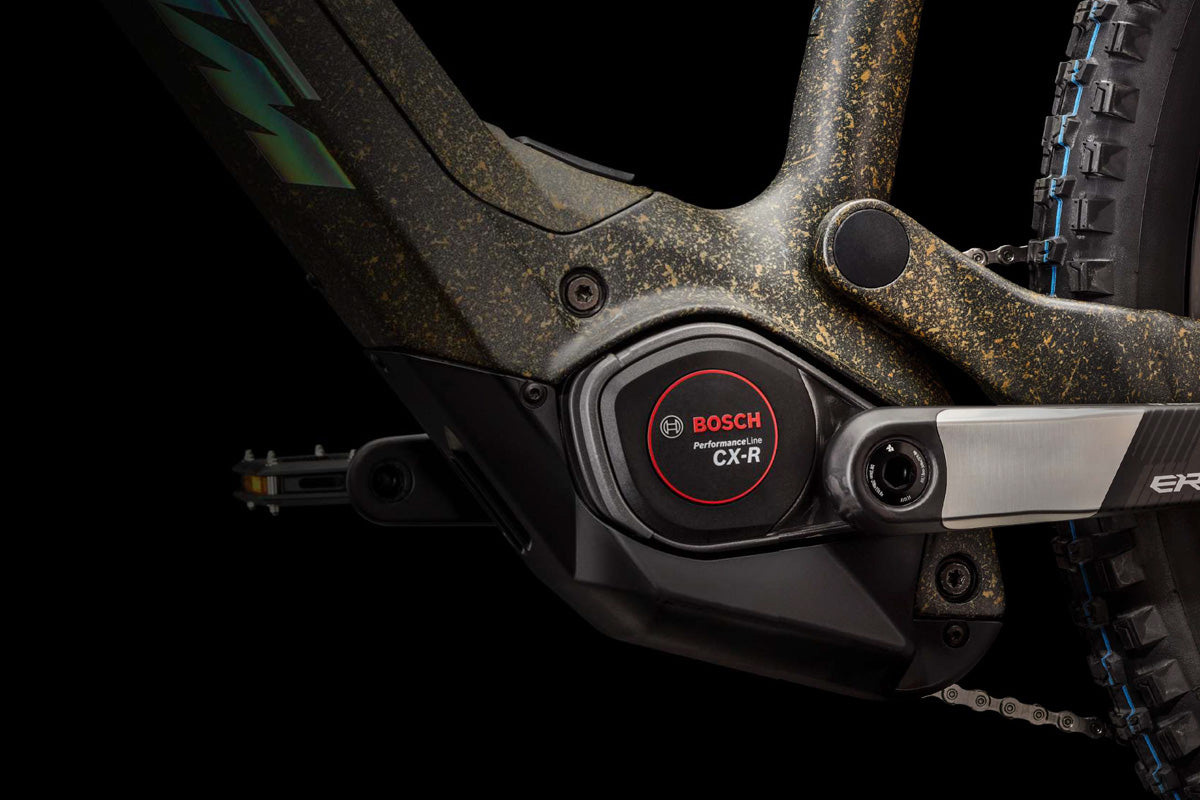

Bosch CX Performance

The Performance Line CX (BDU384Y) takes riding dynamics and agility to a whole new level. It is powerful, light and quiet (120 Nm max. torque, 750-Watt max. motor power, 600% max. support factor).

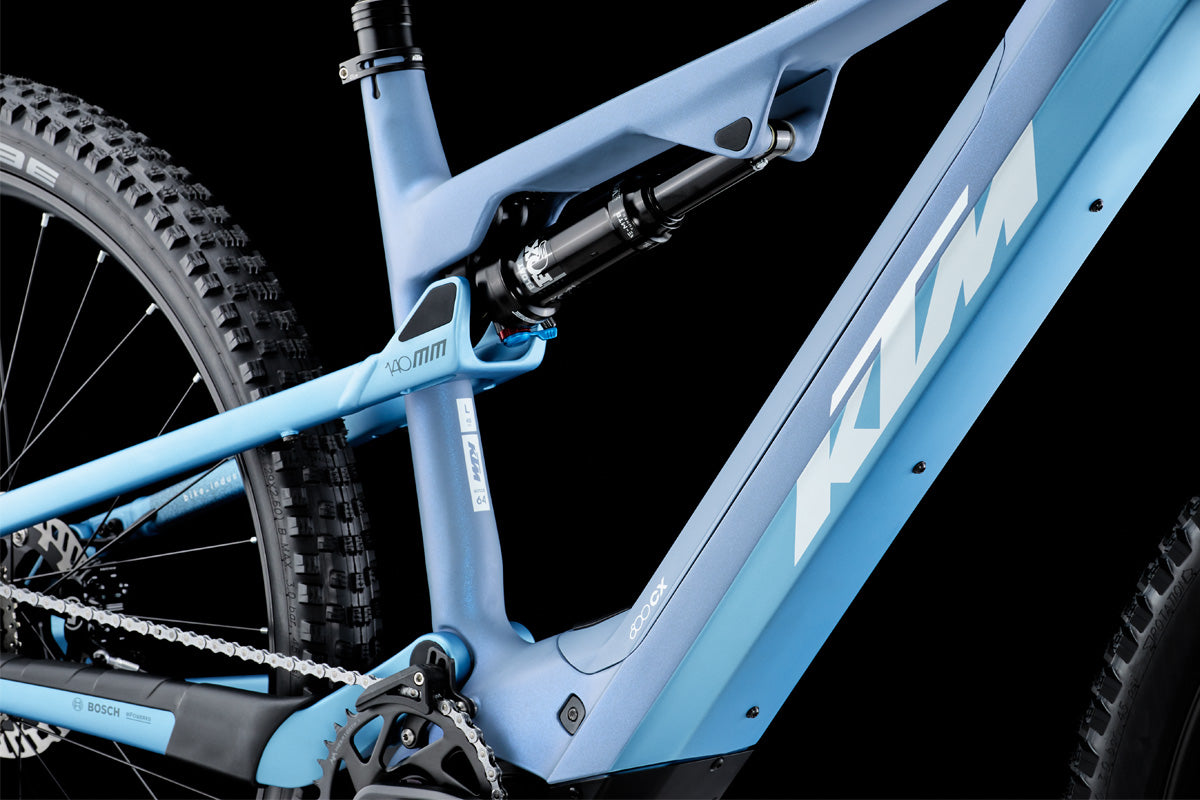

140mm STRAIGHT-LINE-LINK Suspension

STRAIGHT-LINE-LINK (SLL) suspension concept ensures sensitive response, optimal traction, and outstanding control in demanding terrain.

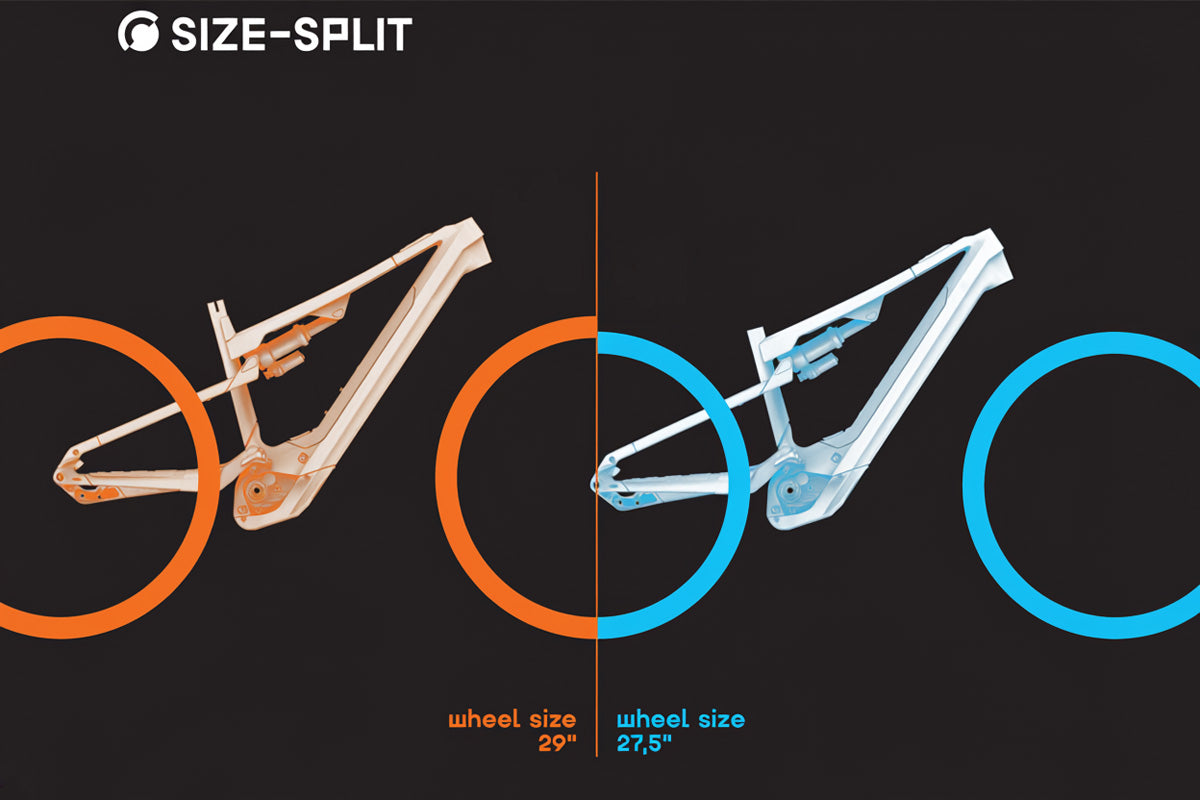

Size Split

Size-Split optimally matches wheel size and frame geometry.

Size S rolls on 27.5-inch wheels for particularly agile handling, while sizes M, L, and XL feature 29-inch wheels for maximum stability and confident rollover performance.

Geometry

Frame Size S 27.5" M 29" L 29" XL 29"
Height 150-164 cm / 4.9"-5.5 165-174 cm / 5.5"-5.9” 175-184 cm / 5.9"-6.0” 185-194 cm / 6.1"-6.4”
Size (CM) 38 43 48 53
BB Drop 12 30 30 30
Standover Height 804 815 823 831
Reach 437 454 470 487
Stack 597 610 623 637
Wheelbase 1208 1225 1248 1271
Chainstay Length 450 460 460 460
Head Tube Length 130 100 115 130
Head Angle 65,0° 65,5° 65,5° 65,5°
Seat Angle 76,5° (74,4°) 76,5° (74,9°) 76,5° (74,6°) 76,5° (75°)
Top Tube Length 580 600 620 640
Seat Tube Length 385 430 450 480
